The NovaMax660 is the next generation of advanced slide-plate forming technology. This state-of-the-art servo driven system is suitable for forming a broad range of meat, poultry and non-meat products. It is commonly used by high volume processors forming popular products such as burger patties, pork sausage, chicken filets and chicken nuggets. The high throughput and reduced cost of ownership will assure a rapid return on your NovaMax660 investment.
Benefits
- Touch screen control assures effective user interface
- Servo motor driven knock out and mold plate drive enhance reliability and accuracy
Features and Specifications
| Forming Style | Slide plate |
|---|---|
| Typical Throughput* | 9,000 lbs/hour | 4,082 kgs/hour |
| Line Width | 26 in | 660 mm |
| Speed | Standard speeds of 25-100 strokes/min (SX up to 120 strokes/min) |
| Feed hopper Capacity | 1,100 lbs | 500 kg |
| Optional Fill Types | Tender-Form® Verti-Form® Port-Fill® Standard-Fill |
| Custom OEM Tooling Options | Forma-Link® Poultry-Plus® True-Sculpt™ |
| Other Options | Meatball roller Cuber-perforator Paper-feed (stacking and continuous) Mounted bucket lift Indexing Tray Conveyor Shuttle Transfer System HomeStyle Patty System Feed the Former |
*Actual throughput rate will depend on application specifications, including, but not limited to, reduction size, raw material and raw material temperature.

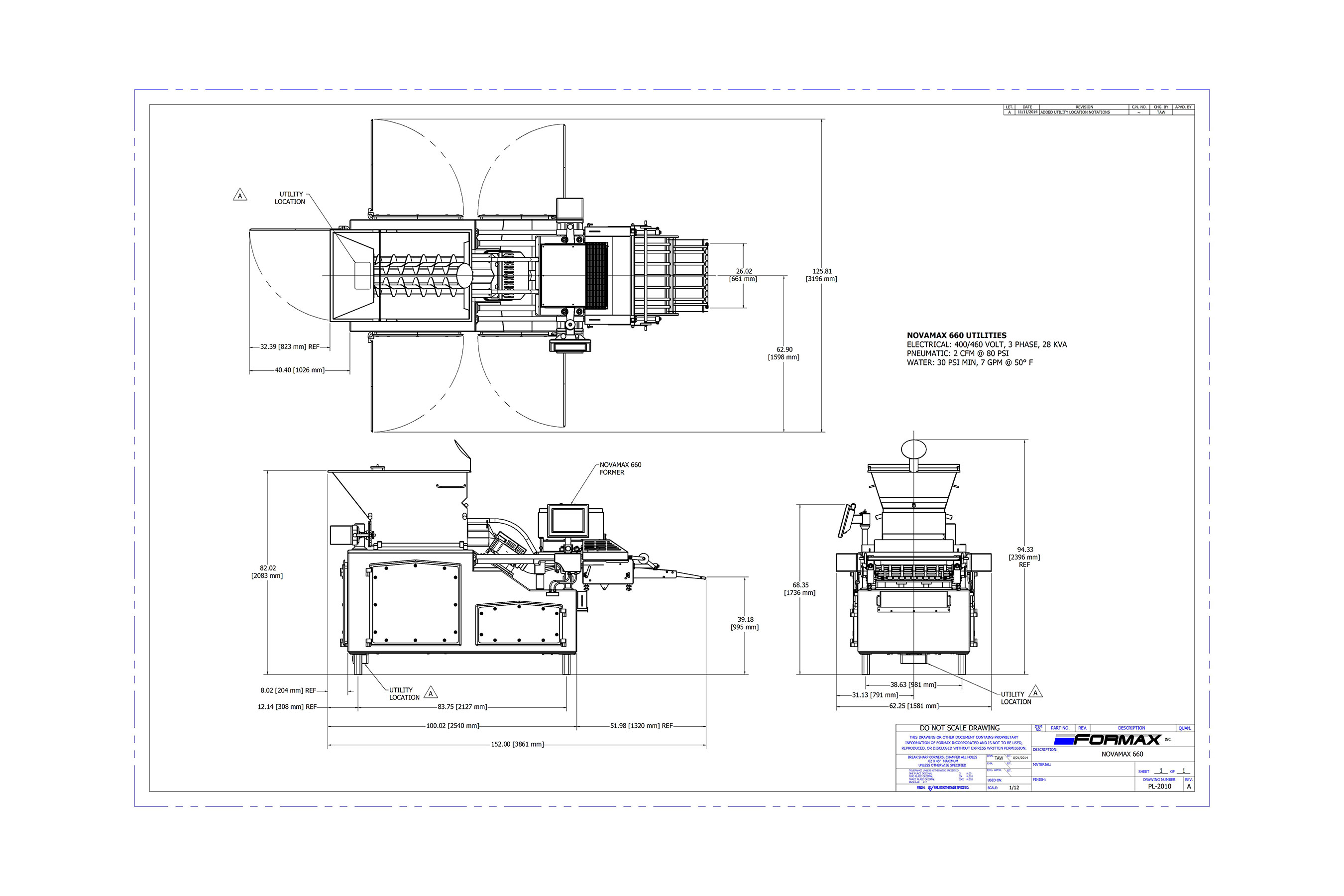

Model Specifications
