Overview

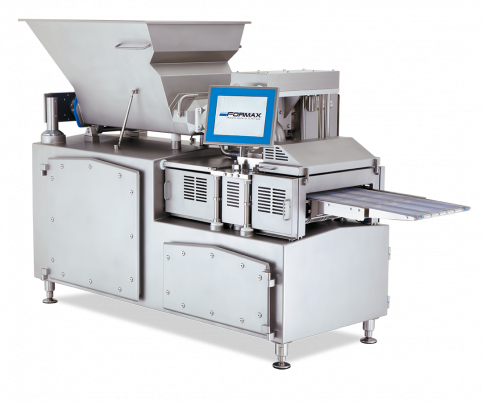

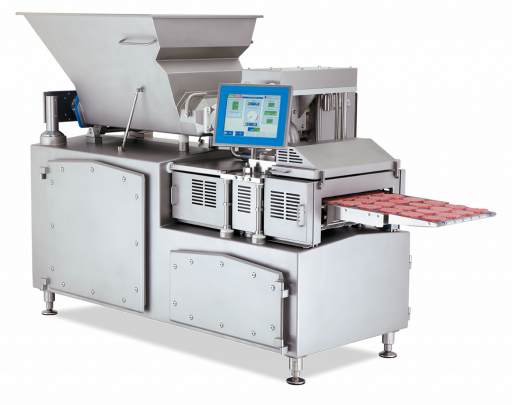

The NovaMax®500 is the next generation of advanced forming technology. It provides excellent product quality, superior productivity, advanced hygiene and a lower cost of ownership. Features include a pivoting product hopper and servo feed screw, touch screen interface, servo knock-out drive, one-piece pump box and a direct drive servo.

Benefits

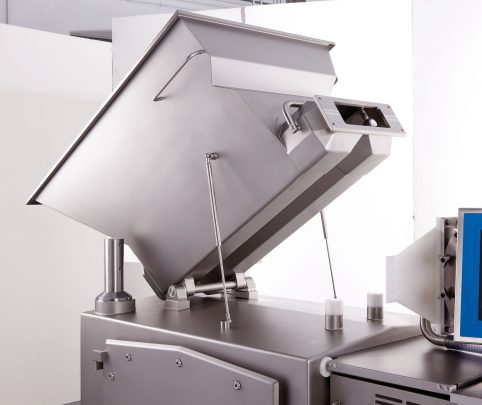

  • Pivoting product hopper

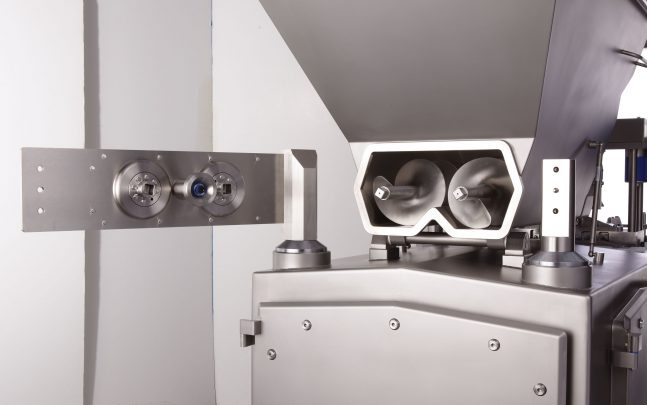

  • Servo driven feed screw
  • Touch screen interface

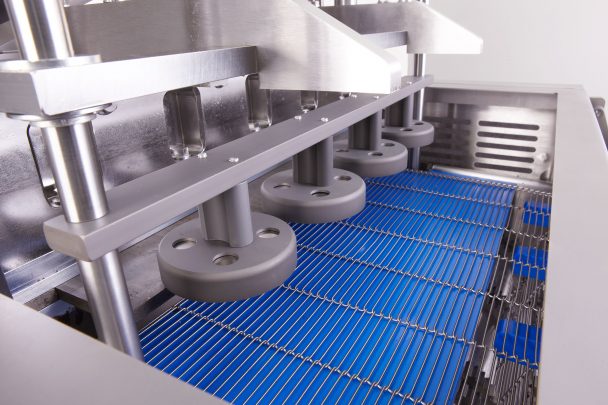

  • Servo knock-out drive
  • Servo driven direct drive mold plate

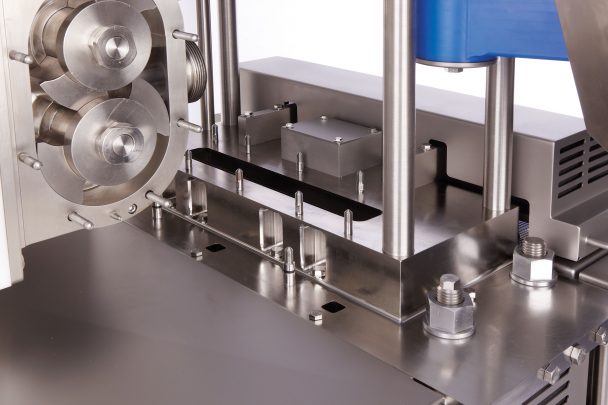

  • One-piece pump box
  • Utilize existing F19 tooling

Product Applications

Ground, Formed and Portioned Products
Sausage Processing Equipment
Protein Alternatives
Pet Food Manufacturing Equipment
Bakery

Features and Specifications

Typical Throughput* 4,500 lbs/hour | 2,041 kg/hour
Line Width 19 in | 500mm
Feed hopper Capacity 1,000 lbs | 454 kg
Forming Style Slide-plate
Optional Fill Types Tender-Form®
Verti-Form®
Port-Fill®
Standard-Fill
Custom OEM Tooling Options Forma-Link®
Poultry-Plus®
True-Sculpt™
Other Options Meatball roller
Cuber-perforator
Paperfeed (Stacking and continuous)
Floor mounted Bucket lift
Indexing Tray Conveyor
Shuttle Transfer System
HomeStyle Patty System
Homestyle Stacker

*Actual throughput rate will depend on application specifications, including, but not limited to, reduction size, raw material and raw material temperature.

Model Specifications
